Features
|
|

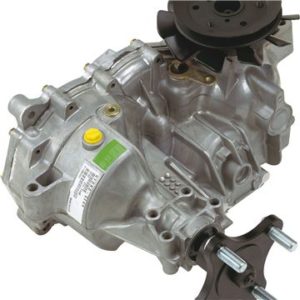

 Maintenance-Free Transmission Worry free performance with maintenance free, integrated zero-turn transmissions. |

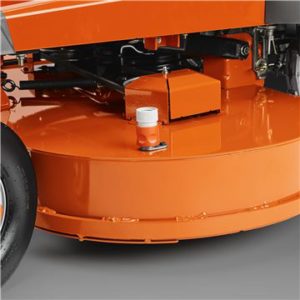

 ClearCut™ Fabricated Cutting Deck The new fabricated design features welded 10 gauge steel construction with additional welded reinforcement strips for maximum durability |
|
Specifications
Dimensions |
Drive System |
|||
| Weight | 580 lbs | Transmission type | Hydrostatic | |
| Tire size, front width | 6 in | Transmission manufacturer | Hydro-Gear | |
| Tire size, front diameter | 11 in | Transmission model | EZT | |
| Tire size, front diameter wheel | 5 in | |||
Capacity |
Equipment |
|||
| Productivity | 2.2 acres/hr | Seat material | Vinyl | |
| Speed forward max | 6.5 mph | Seat spring | Yes | |
| Hour meter | Digital with pre-programmed service intervals | |||
| Cup holder | Yes | |||
| Seat type | 15” high back | |||
Cutting Deck |
Engine |
|||
| Cutting width | 42 in | Engine manufacturer | Briggs & Stratton | |
| Cutting deck type | 10-gauge fabricated | Engine name | Endurance Series V-Twin | |
| Cutting methods | 3-in-1Mulch/Rear Bag/Side discharge Capable | Power | 23 hp | |
| Cutting deck material | Steel | Cylinder displacement | 44.18 cu in | |
| Deck thickness | 10 gauge | Cylinders | 2 | |
| Blade engagement | Electric Clutch | Engine cooling | Air | |
| Blades | 2 pcs | Air filter type | Dual element canister filter | |
| Anti-scalp wheels | 1 | Fuel type | Gasoline | |
| Nose roller | Yes | Engine lubrication type | Full pressure | |
| Deck lifting system | Manual, hand operated | Oil filter | Yes | |
| Spindle/mandrel type | Cast Aluminum | Fuel tank volume (w/ reserve) | 3.5 gal | |
| Cutting height max/min | 4 in / 1.5 in | Fuel tank location | Side (Single) | |
