Features
|
|
 Adjustable Oil Pump Allows you to control oil flow depending on application and weather conditions. |

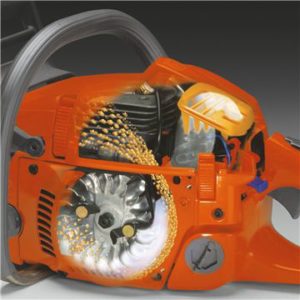

 Air Injection Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life. |
|
Specifications
Engine |
|
| Power output | 3.62 hp |
| Cylinder displacement | 3.68 cu.inch |
| Maximum power speed | 9,000 rpm |
| Idling speed | 2,700 rpm |
| Torque, max. | 3.4 Nm |
| Torque, max. at rpm | 7,000 rpm |
| Clutch engagement speed (±120) | 3,900 rpm |
| Fuel consumption | 437 g/kWh |
| Fuel consumption | 2.56 lbs/h |
| Spark plug | Champion RCJ7Y, NGK BPMR7A |
| Electrode gap | 0.02 in |
| Ignition module air gap | 0.01 in |
| Oil pump type | Automatic |
| Oil pump capacity, max | 17 ml/min |
| Oil pump capacity, min | 6 ml/min |
Emission |
|
| Exhaust emissions (CO2 EU V) | 825 g/kWh |
Equipment |
|
| Bar length (inch) | 24 in |
| Recommended bar length, min | 13 in |
| Recommended bar length, max | 24 in |
| Pitch | 3/8″, .325″ |
| Sprocket type | Spur 7 |
Dimensions |
|
| Weight (excl. cutting equipment) | 13.2 lbs |
Lubricant |
|
| Oil tank volume | 0.7 US pint |
| Oil tank volume | 0.32 l |
Sound and Noise |
|
| Sound power level, guaranteed (LWA) | 114 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Sound pressure level at operators ear | 104 dB(A) |
Vibration |
|
| Equivalent vibration level (ahv, eq) front handle | 3.8 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 6.9 m/s² |
