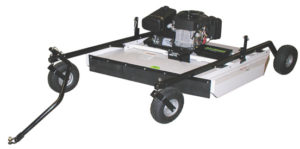

MR55B AcrEase Rough Cut Mower



Features


Large Gas Tank

3-1/4 Gallon gas tank that provides about 3 to 3-1/2 hours of run time.


Blade Engagement

The mower uses a manual lever engagement system.

Height Adjustment

The cutting height is easily adjusted from 2″ – 8″ by turning two cranks.


Large Engines

The AcrEase Rough Cut Mowers come with large 23 HP electric start engines.


Four Tire Design

The four tire design used on the AcrEase provides a great deal of stability and allows the mower to traverse very rough ground. The four tire design also allows the AcrEase to use a free pivoting tongue which eliminates bind ups. The design also places the tires within the width of the deck allowing for an obstruction free trim edge on both sides of the mower.


Deck Design

The main deck is built out of 10 GA (.135″) thick steel with a 1/4″ thick steel top plate for reinforcement. An additional 1/4″ thick steel plate is welded in the blade spindle mounting location. The three layers of steel in the blade spindle mounting area add up to just over 5/8″ thick.


Tow Bar

The tow bar features a farm clevis type connection. This system provides more degrees of motion than most types of hitching systems. This is necessary to prevent binding in rough uneven terrain.


Blade Spindles and Twin Blades

The blade spindles used on the AcrEase mowers are built out of heavy-duty welded steel hubs, 30mm (1-3/16″) steel shafts, machined steel blade holders and large sealed ball bearings. The twin blade design on the AcrEase provides more of a mulch action that reduces the size of the clippings and reduces bunching.

Specifications

Engine
Cutting Deck
Engine Make Briggs & Stratton Number of Blades 2 -30”
Engine Model Commercial Turf Twin Blade Tip Speed (ft/min) 19,000
Engine HP 23 Cutting Width 57”
Lubrication Method Pressure w/ Filter Cutting Height 2.0” – 8.0”
Electric Start Yes Height Adjustment Method Two Cranks
Fuel Tank Size 3 gal. Blade Engagement Clutch Manual
Hour Meter/Tachometer Optional Deck Metal Thickness 10 GA
Deck Top Plate Thickness 2 Separate ¼” Plates
Dimensions
Miscellaneous
Weight 580 lbs. Drive Method 1 B Section “V” Belt
Pneumatic Fixed Rear Tire 15/600X6, 4 ply Tubeless Class Mower Rough Cut (Rear Discharge)
Front Tires on Casters 5.30/4.50X6, 4 ply Tubeless
