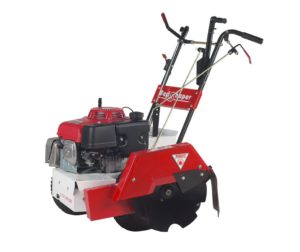

Little Wonder Bed Shaper

904-00-01 Hydro Self-Propelled

Features

Zero-turning radius in transport

Tow valve for moving the unit without engine power
Differential makes it easy to cut an extremely tight radius

Lifetime blade guarantee against chipping, breaking, bending and delaminating

24” turn radius with blade engaged; easily cuts even small diameter tree rings

Powerful notched blade slices through the soil and turf to create a clean, sharp edge
BladeFloat™ lets the arm “float” over the obstruction, while the blade continues to cut.

Move edging jobs forward; infinitely variable speed control in both forward and reverse

Cutting depths from .5″ to 4.5″ controlled by a seven position, easily changeable gauge wheel.

Hydrostatic transmission, proven, reliable self-propelled action to get the job done quickly and easily
Spring-loaded belt idler provides maintenance free operation and is fully enclosed in the frame for extra protection

Shape-Trak™ design mounts the blade in-line with the drive wheels. Blade follows the exact path of the wheels for precise edging.

Specifications

Engine Honda GXV390
Displacement 390cc
Transmission Hydrostatic, Variable speed control (forward and reverse)
Blade Diameter 16.25″ (41.3 cm) dia., Heat treated spring steel
Bearings Roller (greaseable)
Frame Material Welded, formed steel
Max Cutting Depth 4.5″ (11.4 cm)
Depth Adjustment Style 7-position Gauge Wheel
Tire Size 145 / 70 – 6
Dimensions L x W x H 51″ (129.5 cm) x 43″ (109.2 cm) x 43″ (109.2 cm)
Weight 365 lbs.
Warranty 2 Years

Accessories


Shredder Kit – 80001SH

To further increase productivity, the bolt-on Shredder Blades break up sod strips for one-step edging.  This kit is designed for sandy or loamy soils.


Weight Kit – 80002

When encountering extra hard or compacted soil, the 16 pound Weight Kit helps keep the blade in the ground.
