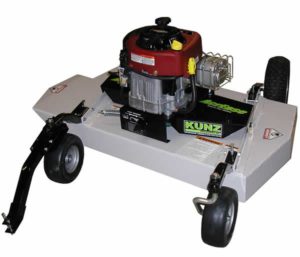

H40B AcrEase Finish Mower



Features


Blade Engagement

The H40B is equipped with a manual lever engagement system.


Blade Spindles
The blade spindles used on the AcrEase are built out of heavy duty welded steel hubs, 25 mm (1″) shafts and large greasable bearings.


Height Adjustment

The H40B features a 4-point height adjust system that has a cutting height range of 1″ – 4″.


Large Engines

The AcrEase Finish Cut Mowers come with large 10.5 HP engines.


Low Profile Design

The low profile design of the AcrEase makes it very easy to mow under low branch trees. There is no need to get beat by branches when the AcrEase is attached to the side of the tow vehicle.


Hitching

The AcrEase Finish Cut Mowers have two different types of hitching available. These are the Lawn & Garden Hitching which works best with riding mowers and zero turn mowers and the ATV Tongue which works best with tow vehicles that do not have their own mowing deck. With the Lawn & Garden Hitching there are a variety of ways that multiple wing mowers can be pulled.


Deck Design

The AcrEase deck is the heaviest built in the industry. The main deck on the H40B is built out of 11 GA (.120″) thick steel with an 11 GA (.120″) thick steel top reinforcement plate.

Specifications

Engine
Cutting Deck
Engine Make OHV Briggs & Stratton Number of Blades 2 -20”
Engine Model Power Built Blade Tip Speed (ft/min) 17,500
Engine HP 10.5 Cutting Width 38”
Lubrication Method Splash Cutting Height 1.0” – 4.0”
Fuel Tank Size 2.88 qts. Blade Engagement Clutch Manual
Hour Meter/Tachometer No Clutch Engagement Speed Manual
Oil Pressure Shut Off No Deck Metal Thickness 11 GA
Deck Top Plate Thickness 11 GA
Dimensions
Miscellaneous
Weight 235 lbs. Drive Method 1 B Section “V” Belt
Pneumatic Fixed Rear Tire 13/500X6, 1 ply Turf Class Mower Homeowner
Front Tires on Casters 9/350X4, Slick (Flat Proof Urethane)
# of Anti-Scalp Wheels Under Deck 3 (2 Front, 1 Rear)
