Features
|
|

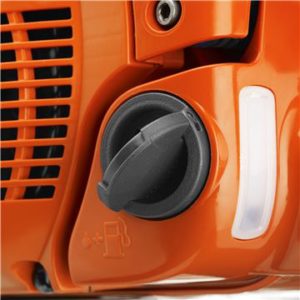

 Flip-up Tank Cap The flip-up tank cap is easy to open and close when refueling. |
 AutoTune AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburetor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter. |
|
Specifications
Engine |
|
| Power output | 4.7 hp |
| Cylinder displacement | 3.65 cu.inch |
| Maximum power speed | 9,600 rpm |
| Idling speed | 2,800 rpm |
| Torque, max. | 3.65 Nm |
| Torque, max. at rpm | 8,100 rpm |
| Clutch engagement speed (±120) | 4,300 rpm |
| Fuel consumption | 494 g/kWh |
| Fuel consumption | 3.84 lbs/h |
| Spark plug | NGK CMR6H |
| Electrode gap | 0.02 in |
| Ignition module air gap | 0.01 in |
Emission |
|
| Exhaust emissions (CO2 EU V) | 777 g/kWh |
Equipment |
|
| Bar length (inch) | 18 in, 20 in, 24 in, 28 in |
| Recommended bar length, min | 15 in |
| Recommended bar length, max | 28 in |
| Chain type | C83, C85 |
| Gauge | .058″ |
| Pitch | 3/8″ |
Dimensions |
|
| Weight (excl. cutting equipment) | 13.4 lbs |
Lubricant |
|
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Oil tank volume | 0.7 US pint |
| Oil tank volume | 0.33 l |
Sound and Noise |
|
| Sound power level, guaranteed (LWA) | 118 dB(A) |
| Sound power level, measured | 116 dB(A) |
| Sound pressure level at operators ear | 106 dB(A) |
Vibration |
|
| Equivalent vibration level (ahv, eq) front handle | 3.2 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 5 m/s² |
