Features
|
![]() Air Injection Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life. |

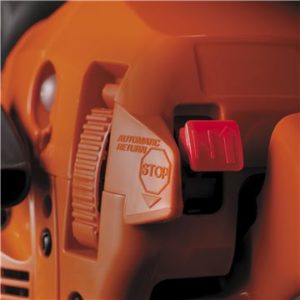

![]() Easy to Start Combined start/stop switch and fuel pump make the saw very easy to start. |
|
Specifications
Lubricant |
Sound and Noise |
|||
Oil tank volume | 0.55 US pint | Sound power level, guaranteed (LWA) | 114 dB(A) | |
Oil pump type | Fixed Flow | Sound power level, measured | 112 dB(A) | |
Oil pump capacity max | 13 ml/min | Sound pressure level at operators ear | 103 dB(A) | |
Oil pump capacity min | 13 ml/min | |||
Vibration |
Overall Dimensions |
|||
Equivalent vibration level (ahv, eq) front handle | 3.1 m/s² | Weight (excl. cutting equipment) | 10.8 lbs | |
Equivalent vibration level (ahv, eq) rear handle | 4.9 m/s² | |||
Engine |
Equipment |
|||
Cylinder Displacement | 45.7 cm³ | Recommended bar length, max | 20 in | |
Cylinder displacement | 2.8 cu.in | Recommended bar length, min | 13 in | |
Power output | 2.8 hp | Chain pitch | .325” | |
Maximum power speed | 9000 rpm | Chain gauge | .050 in | |
Fuel tank volume | 0.95 US pint | Chain speed at max power | 56.89 fts | |
Idling speed | 2700 rpm | Chain speed at 133% of maximum engine power speed | 75.46 fts | |
Spark plug | Champion RCJ7Y, NGK BPMR7A | |||
Electrode gap | 0.02 in | |||
Torque, max. | 2.4 Nm | |||
Fuel Consumption | 481 g/kWh |
