Features
|

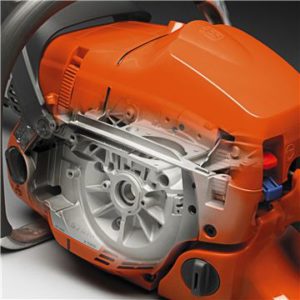

![]() Adjustable Oil Pump Allows you to control oil flow depending on application and weather conditions |
![]() Air Injection Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life. |
|
Specifications
Lubricant |
Sound and Noise |
|||
Oil tank volume | 1.06 US pint | Sound power level, guaranteed (LWA) | 115 dB(A) | |
Oil pump type | Automatic | Sound power level, measured | 114 dB(A) | |
Oil pump capacity max | 20 ml/min | Sound pressure level at operators ear | 102 dB(A) | |
Oil pump capacity min | 15 ml/min | |||
Vibration |
Overall Dimensions |
|||
Equivalent vibration level (ahv, eq) front handle | 6.5 m/s² | Weight (excl. cutting equipment) | 17.4 lbs | |
Equivalent vibration level (ahv, eq) rear handle | 10.2 m/s² | |||
Engine |
Equipment |
|||
Cylinder Displacement | 93.6 cm³ | Recommended bar length, max | 36 in | |
Cylinder displacement | 5.71 cu.in | Recommended bar length, min | 18 in | |
Power output | 6.97 hp | Chain pitch | 3/8” | |
Maximum power speed | 9600 rpm | Chain gauge | .058 in | |
Fuel tank volume | 1.9 US pint | Chain speed at 133% of maximum engine power speed | 85.63 fts | |
Idling speed | 2500 rpm | |||
Spark plug | Champion RCJ6Y | |||
Electrode gap | 0.02 in | |||
Torque, max. | 5.9 Nm | |||
Fuel Consumption | 470 g/kWh |
