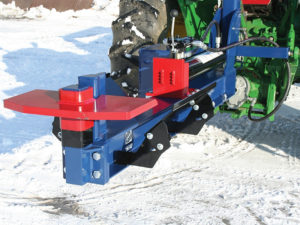

TMH13HYD
Specifications
| Operation | Horizontal, grounded or elevated |
| Cylinder | 4″ X 24″ clevis type x 1.75″ rod |
| Valve | 3 Position with Auto Return |
| Beam | 6″ heavy-duty formed steel |
| Wedge | 9″ high carbon steel; Optional: 4-way wedge |
| Log Opening | 25” |
| Splitting Force | Up to 20 tons, depending on the tractor’s hydraulic pressure |
