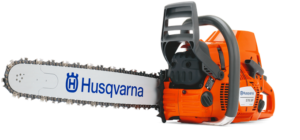

576XP Husqvarna Chainsaw

Features


Quick-Release Air Filter
Facilitates cleaning and replacement of the air filter.
Adjustable Oil Pump
Allows you to control oil flow depending on application and weather conditions

Air Injection
Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.


X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.

Specifications

Lubricant
Sound and Noise
Oil tank volume 0.85 US pint   Sound power level, guaranteed (LWA) 116 dB(A)
Oil pump type Automatic   Sound power level, measured 114 dB(A)
Oil pump capacity max 22 ml/min   Sound pressure level at operators ear 105 dB(A)
Oil pump capacity min 5 ml/min

Vibration
Overall Dimensions
Equivalent vibration level (ahv, eq) front handle 2.9 m/s²   Weight (excl. cutting equipment) 14.55 lbs
Equivalent vibration level (ahv, eq) rear handle 3.6 m/s²

Engine
Equipment
Cylinder Displacement 73.5 cm³   Recommended bar length, max 28 in
Cylinder displacement 4.48 cu.in   Recommended bar length, min 15 in
Power output 5.7 hp   Chain pitch 3/8”
Maximum power speed 9600 rpm   Chain gauge .050 in
Fuel tank volume 1.48 US pint   Chain speed at max power 70.21 fts
Idling speed 2700 rpm   Chain speed at 133% of maximum engine power speed 93.5 fts
Spark plug Champion RCJ7Y NGK BPMR7A
Electrode gap 0.02 in
Torque, max. 4.5 Nm
Fuel Consumption 417 g/kWh
