Husqvarna Articulating Out-Front Riders

For more models click here.

R 322T

Features


Articulated Steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior maneuverability with a minimum turning radius at full lock

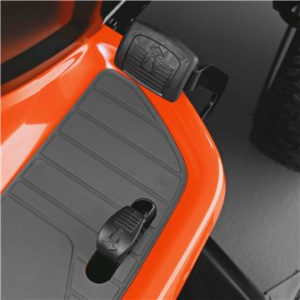

Pedal-Operated Hydrostatic Transmission

Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.


Front-Mounted Cutting Deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

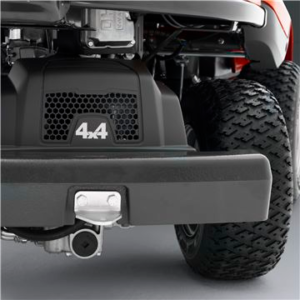

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes.  AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

Specifications

Engine

Cutting Deck
Engine Manufacturer Briggs & Stratton Uncut Circle 11.8 in
Engine Name Endurance Series V-Twin Cutting width, min 41 in
Net Power at presest rpm Energy 12.6 kW Cutting width, max 48 in
Net Power at preset rpm 3000 rpm Optional Cutting Decks Combi 103, Combi 112, Side Discharge 48
Cylinder displacement 40.03 cu. Inch Cutting Deck Type Combi
Cylinders 2 Cutting Deck Material Steel
Engine Cooling Air Cutting Height, max (approx.) 3 in
Generator 16 A Cutting Height, min (approx.) 1 in
Battery 12 V Cutting Height Steps 10 pcs
Battery 12 Ah Blade Engagement Automatic
Fuel Type Gasoline Blades 3 pcs
Fuel Tank Volume 25.36 US Pint Power-Coated Cutting Deck Yes
Fuel Tank Volume (with reserve) 3.2 gal (US)
Oil Filter Yes

Battery

Vibration
Battery Type Lead / Acid Vibration Level Steering Wheel 2.5 m/s²
Battery Capacity 24 Ah Vibration Level Seat .07 m/s²

Dimensions

Equipment
Tire Dimensions, Front 170/60-8 Hour Meter Digital w/ pre-programmed service intervals
Tire Dimensions, Rear 170/60-8 Seat Material Vinyl
Wheelbase 34.9 in Seat Suspension Yes
Base Machine, Height 45.3 in Seat Back Height High
Base Machine, Length 79.5 in Foldable Seat Yes
Base Machine, Width 35 in Steering Wheel Type Comfort
Weight 570.99 lbs

Drive System
Transmission Type Hydrostatic
Transmission Manufacturer, Rear Tuff Torq
Drive Method Pedal-Operated
Speed Forward Max 5.6 mph
Speed Reverse Max 5.6 mph
Transmission Manufacturer, Front Tuff Torq
Transmission Model, Front KTM10L
Transmission Model, Rear K574
