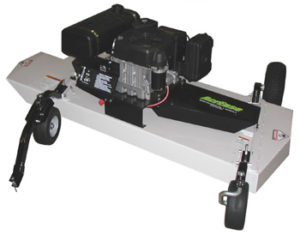

C60BE AcrEase Finish Mower



Features


Large Gas Tank

3 Gal gas tank that provides about 3 – 3-1/2 hours of run time.


Blade Spindles

The blade spindles used on the AcrEase are built out of heavy duty welded steel hubs, 25 mm (1″) shafts and large greasable bearings.

Height Adjustment

The mower features a 4-point height adjust system that has a cutting height range of 1″ – 4″.


Large Engines
The AcrEase Finish Cut Mowers come with large 20 HP electric start engines.


Low Profile Design

The low profile design of the AcrEase makes it very easy to mow under low branch trees. There is no need to get beat by branches when the AcrEase is attached to the side of the tow vehicle.


Blade Engagement

The mower is equipped with an electric clutch for blade engagement.

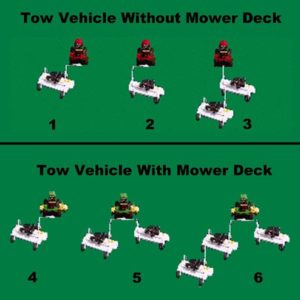

Hitching

The AcrEase Finish Cut Mowers have two different types of hitching available. These are the Lawn & Garden Hitching which works best with riding mowers and zero turn mowers and the ATV Tongue which works best with tow vehicles that do not have their own mowing deck. With the Lawn & Garden Hitching there are a variety of ways that multiple wing mowers can be pulled.

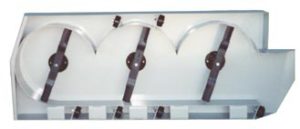

Deck Design

The AcrEase deck is the heaviest built in the industry. The main deck is built out of 10 GA (.135″) thick steel with an 7 GA (.179″) thick steel top reinforcement plate. The deck design also features a wide side discharge, deep deck design and 3-20″ blades which are inline. All of these features increase capacity and cut quality. Other standard features are 6 anti-scalp wheels and a front and rear safety zone.

Specifications

Engine
Cutting Deck
Engine Make Briggs & Stratton Commercial   Number of Blades 3 -20”
Engine Model Commercial Turf  OHV   Blade Tip Speed (ft/min) 17,500
Engine HP 20   Cutting Width 58”
Lubrication Method Pressure w/ Filter   Cutting Height 1.0” – 4.0”
Electric Start Yes   Blade Engagement Clutch Electric Clutch
Fuel Tank Size 3 gal.   Deck Metal Thickness 10 GA
Hour Meter/Tachometer Yes   Deck Top Plate Thickness 7 GA
Oil Pressure Shut Off Yes

Dimensions
Miscellaneous
Weight 390 lbs.   Drive Method 1 B Section “V” Belt
Pneumatic Fixed Rear Tire 13/500X6, 2 ply Turf   Class Mower Commercial
Front Tires on Casters 9/350X4, Slick (Flat Proof Urethane)
# of Anti-Scalp Wheels Under Deck 6 w/ front skids(4 Front, 2 Rear)
